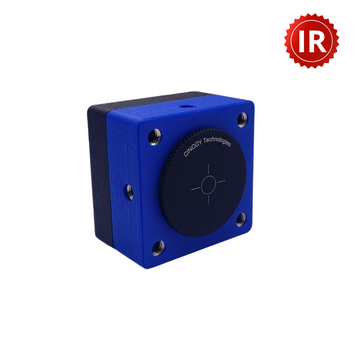

Laser Beam Profiler - CinCam CMOS 1201-IR + RayCi Lite

USD $3,970.00
USD $3,374.95
Description

OVERVIEW

  • Sensor Active area (mm²): 6.7 x 5.3
  • Physical Dimension (mm3): 40x40x20
  • Number of pixel: 1.3M Pixel
  • Pixel size: 5.2×5.2µm
  • Mode: CW
  • Bit depth: 8-Bit
  • Dynamic: >61dB
  • Interface: USB2.0
  • Spectral range: IR phosphor coating: 1470nm – 1605nm
  • Software linearity correction
  • RayCi Lite Software included in package: specification

Contact us to get the RayCi upgraded version

SCOPE OF DELIVERY

beam profiler, 1 USB cable, RayCi Lite license
