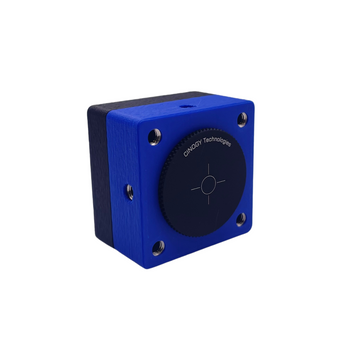

Laser Beam Profiler - CinCam CMOS 1204 + RayCi Lite

USD $3,410.00
USD $2,898.95
Description

CinCam CMOS OVERVIEW

  • Sensor Active area (mm²): 5.7 x 4.3
  • Physical Dimension (mm3): 40x40x20
  • Number of pixel: 5M Pixel
  • Pixel size: 2.2×2.2µm
  • Mode: CW
  • Bit depth: 8Bit
  • Dynamic: >70dB
  • Interface: USB2.0
  • Spectral range: Standard, absorptive built-in ND filter: 400nm – 1320nm or 400 – 1150nm
  • RayCi Lite Software included in package: specification

Contact us to get the RayCi upgraded version

SCOPE OF DELIVERY

beam profiler, 1 USB cable, RayCi Lite license
