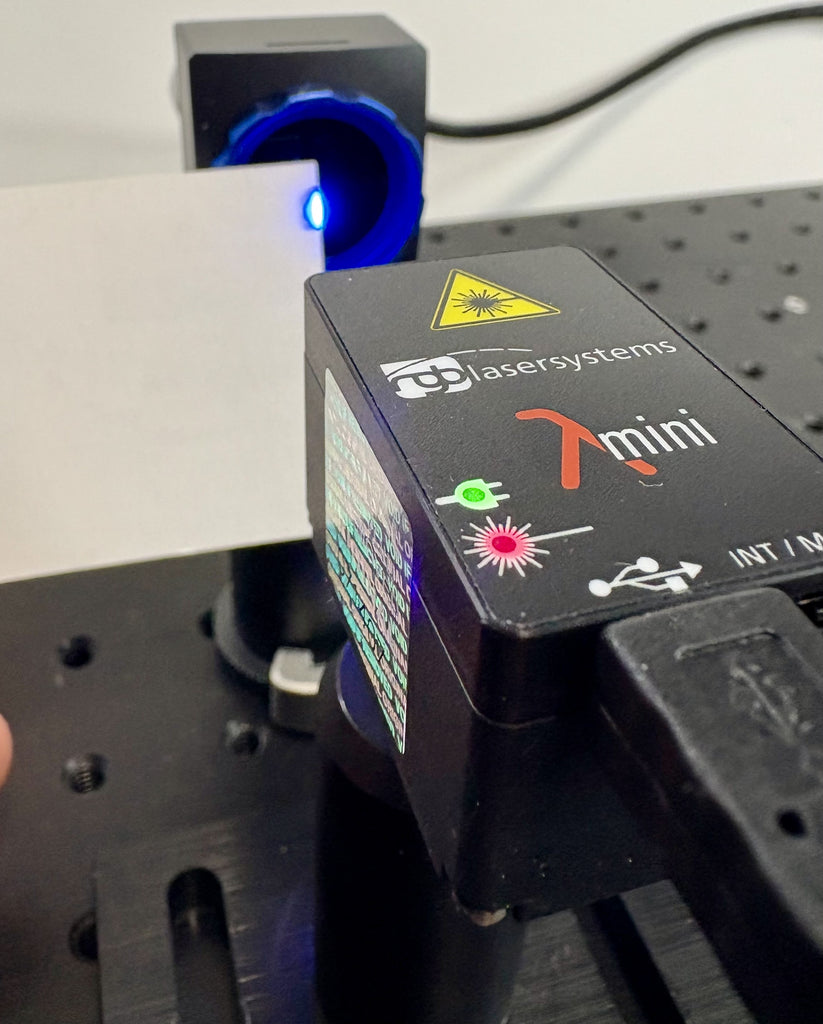

Lambda Mini 405 nm 50mW - CW miniaturized laser module

405 nm Laser

The Lambda Mini 405 nm 50mW CW miniaturized laser module is a state-of-the-art, German-engineered solution for compact laser integration. This all-inclusive, plug-and-play CW 405 nm laser module is recognized as the world's smallest complete laser system, meticulously integrating the laser diode, collimating optics, laser controller, and power supply into an exceptionally compact design. It simplifies operation by requiring only a USB cable for power, operation, and computer-based control.

This advanced 405 nm laser is an ideal choice for a diverse range of high-precision applications, including:

-Analytical Instrumentation: Providing precise 405 nm illumination for various analytical techniques.
-Bioinstrumentation: Essential for biological imaging and analysis requiring a 405 nm wavelength.
-Confocal Microscopy: Enhancing resolution and contrast with its specific 405 nm output.
-Holography: Delivering the precise wavelength stability needed for holographic recording.
-HeNe Replacement: A modern, compact, and efficient alternative to traditional HeNe lasers in systems requiring a similar wavelength range.
-LIDAR: Contributing to remote sensing applications where a 405 nm source is beneficial.
-Metrology: Offering high accuracy for measurement and inspection tasks.
-Photodynamic Therapy: Utilizing the 405 nm wavelength for targeted therapeutic applications.

Ltune Laser Control Software

The Lambda Beam uses a USB interface for remote control. The laser can be controlled either via the Ltune Windows application (included) or with the user’s custom software via serial communication.

The Ltune software for Windows can be used to configure and control the laser. The software features:
- Modulation mode selection
- Output power adjustment
- Display of the laser status, configuration and operating hours
- Temperature display and adjustment

Download Datasheet
- Type: Diode
- Wavelength: 405nm
- Maximum output power: 50mW
- Power supply: included, built-in
- Beam diameter: 1.1 x 2.2mm to 1.2 x 2.8mm
- Divergence: < 0.9 mrad
- Beam mode: TEM00
- Polarization: Linear, >100:1
- Power stability: <2%, (10h) under stable environmental conditions

Ships from Cambridge, MA
