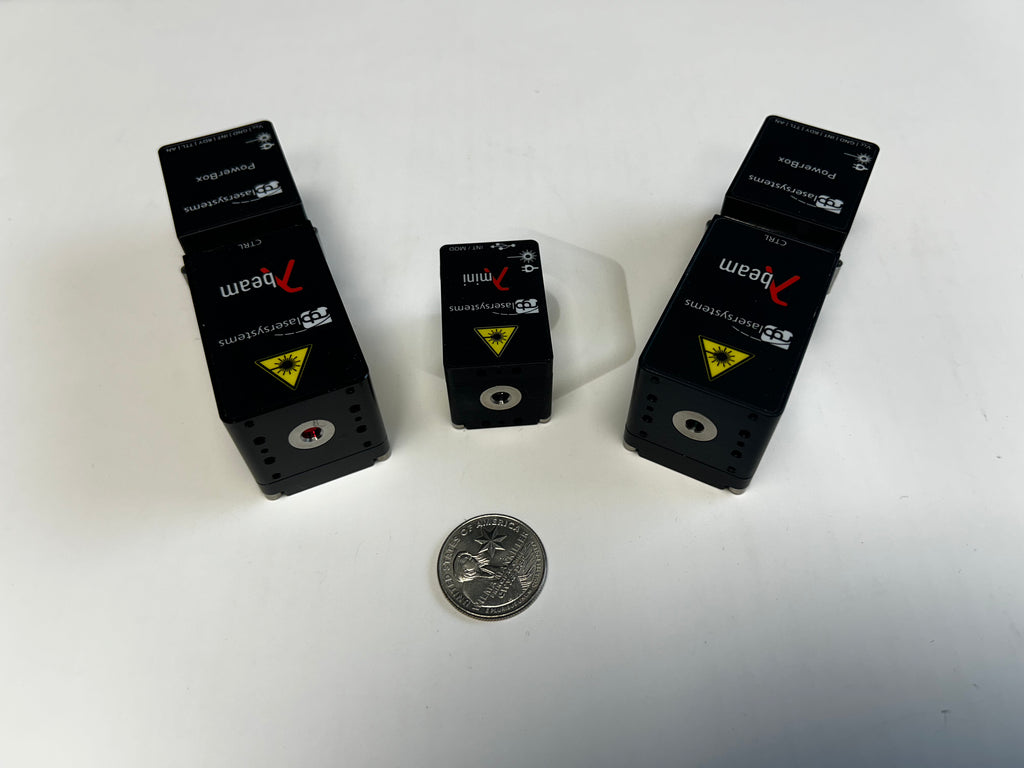

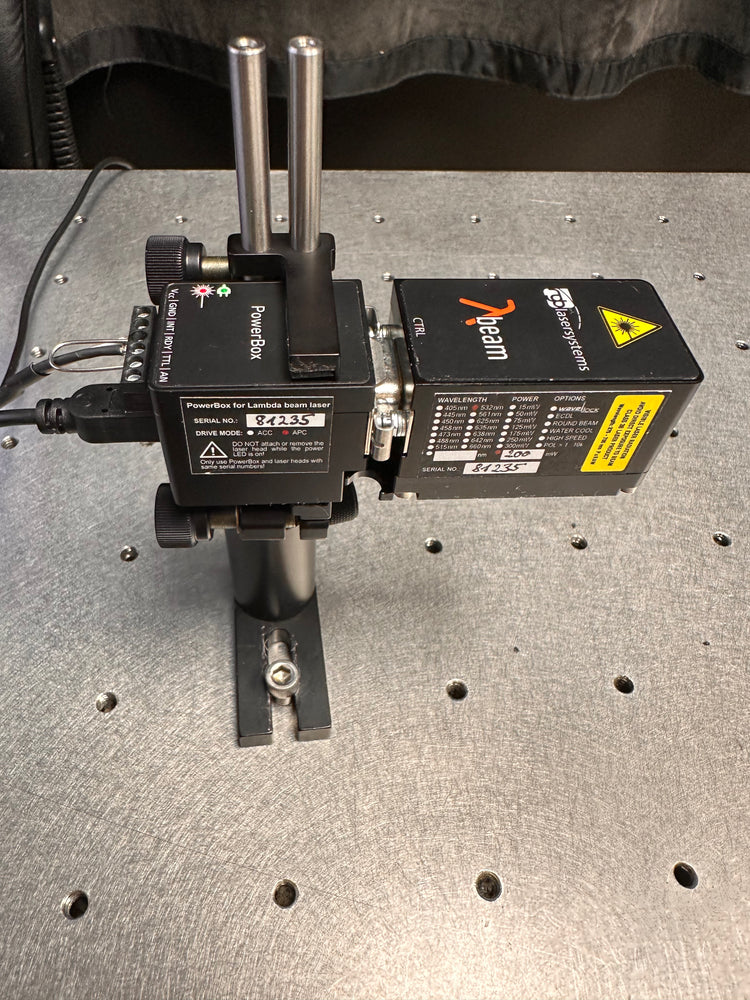

Lambda Beam 532 nm DPSS 100mW - CW compact laser module

DPSS CW Laser

All inclusive, plug-and-play. The Lambda Beam CW DPSS laser is a high-performance, modulatable laser source designed for seamless integration. This German-engineered, all-inclusive diode-pumped solid-state laser system boasts a compact footprint without compromising on power or precision. Renowned for its remarkable durability and excellent beam quality, the Lambda Beam DPSS laser offers unparalleled versatility. With various options for system integration, it provides the highest flexibility for demanding industrial, scientific, and and medical applications, making it a truly universal solution

CW DPSS lasers are ideally suited for a wide range of demanding applications, providing stable and precise continuous-wave output for:

-Analytical Instrumentation and Bioinstrumentation: Enhancing the accuracy and sensitivity of critical measurement systems.

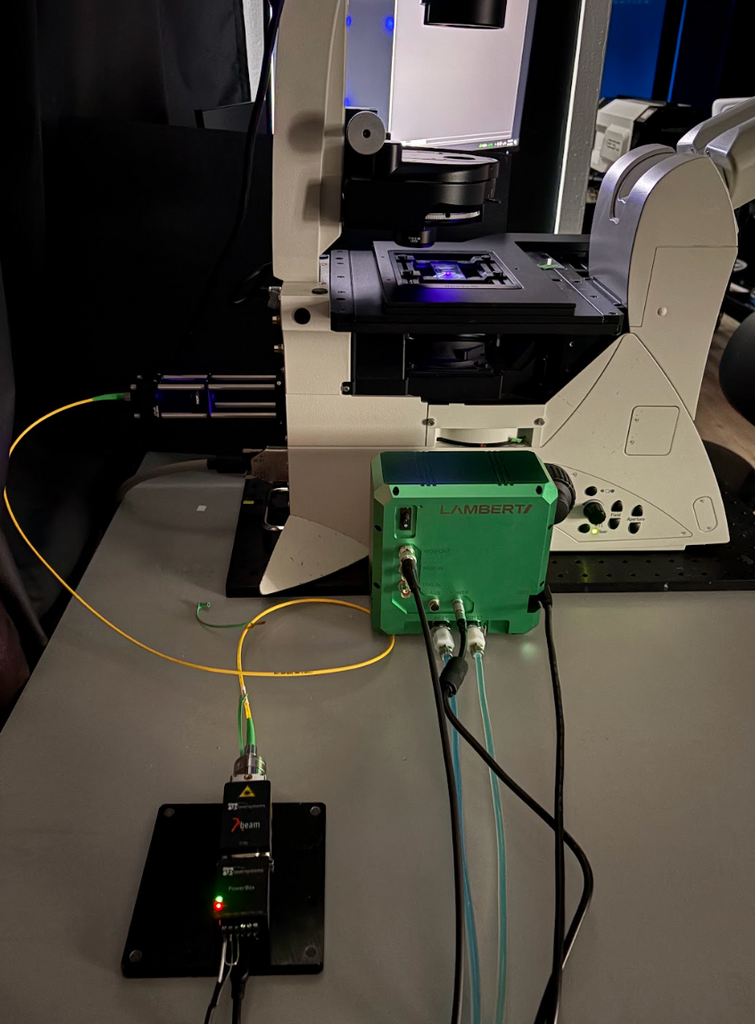

-Confocal Microscopy: Delivering the stable, high-quality light essential for advanced imaging.

-Holography: Offering the coherence and power required for intricate 3D light field recording.

-HeNe Replacement: Providing superior, more efficient alternatives to traditional Helium-Neon lasers.

-LiDAR (Light Detection and Ranging): Enabling precise distance measurement and mapping in various environments.

-Metrology: Supporting high-precision measurement and inspection in industrial and scientific settings.

-Raman Spectroscopy: Delivering stable, narrow-linewidth sources for detailed chemical analysis.

-Speckle Interferometry: Facilitating non-contact, full-field displacement and deformation measurements.

-Photodynamic Therapy (PDT): Supplying specific wavelengths for targeted medical treatments.

Ltune Laser Control Software

The Lambda Beam uses a USB interface for remote control. The laser can be controlled either via the Ltune Windows application (included) or with the user’s custom software via serial communication.

The Ltune software for Windows can be used to configure and control the laser. The software features:
- Modulation mode selection
- Output power adjustment
- Display of the laser status, configuration and operating hours
- Temperature display and adjustment

Download Datasheet
- Type: DPSS
- Wavelength: 532nm
- Maximum output power: 100mW
- Power supply: Powerbox
- Beam diameter: round, 1.2mm
- Divergence: < 1.2 mrad
- Beam mode: TEM00
- Polarization: Linear, >10:1
- Power stability: <3%, (8h)
- Drive mode: active power control

Ships from Cambridge, MA
