Lambda Beam Wavelock - CW / 785 nm / 225 mW - Wavelength Stabilized Laser Module for Raman Spectroscopy

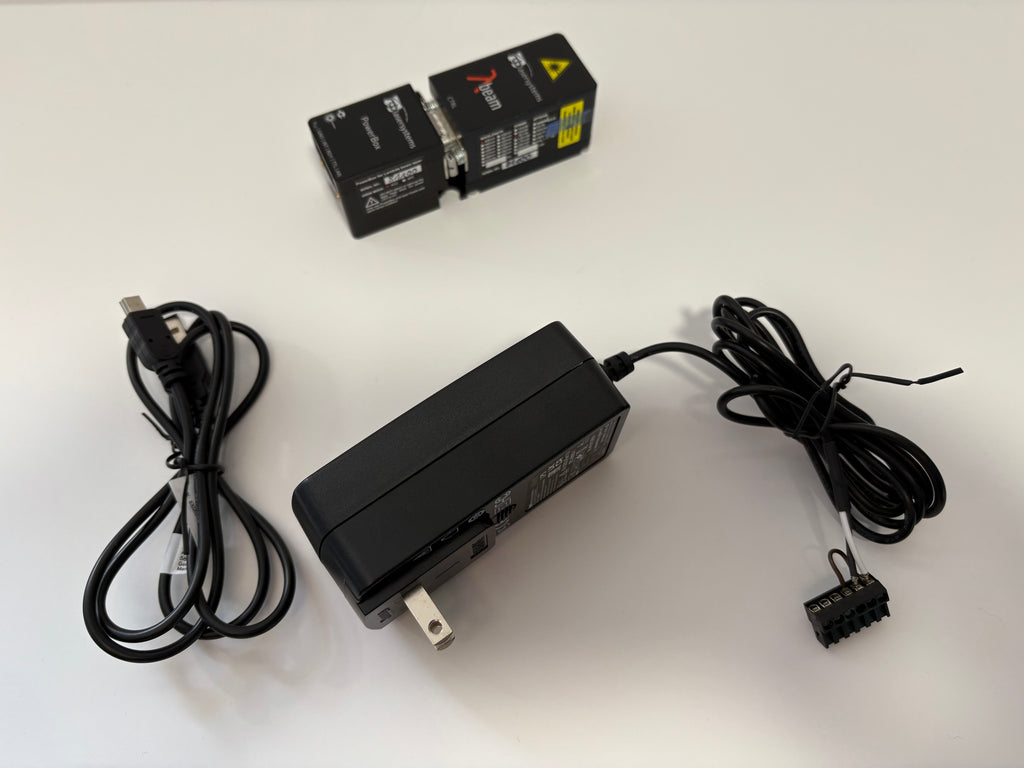

The Lambda Beam Wavelock CW laser module provides an exceptionally stable single mode emission with a wavelength stability <0.015 nm and a spectral linewidth as small as <0.05pm. This Lambda Beam Wavelock module is all-inclusive and ready to use out of the box. It is equipped with a Power Controller or the PowerBox controller that is directly attached to the laser head, ideal for compact scientific applications or industrial integration.

- Analytical Instrumentation
- Bio-Instrumentation
- Confocal Microscopy
- Holography
- HeNe Replacement
- LIDAR
- Metrology
- RAMAN
- Speckle Interferometry
- Photodynamic Therapy

Download Datasheet


- Type: Diode
- Wavelength: 785nm
- Spectral linewidth: <0.4 pm
- Maximum output power: 225mW

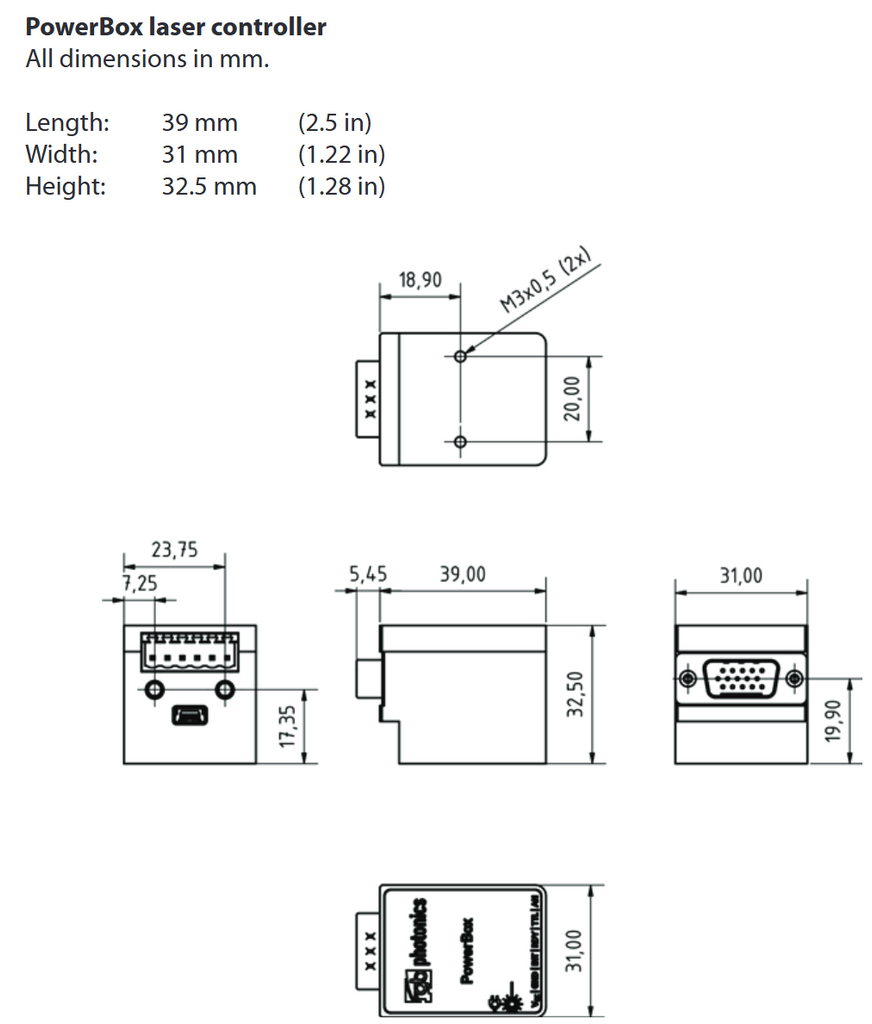

- Power supply: Powerbox
- Coherence length: >1.5m
- Modulation input: analog and digital, up to 1.5MHz

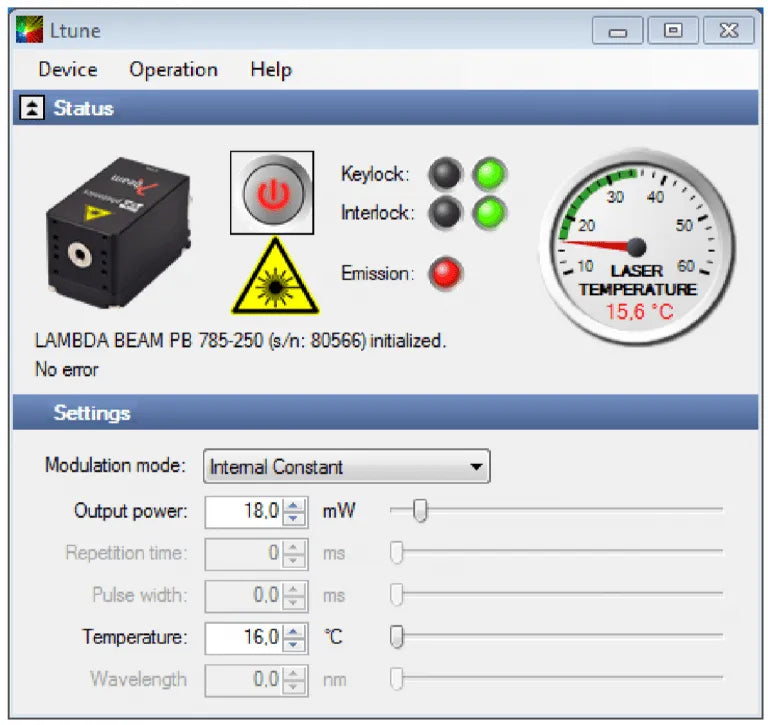

- Digital interface: USB
- Interlock: Yes

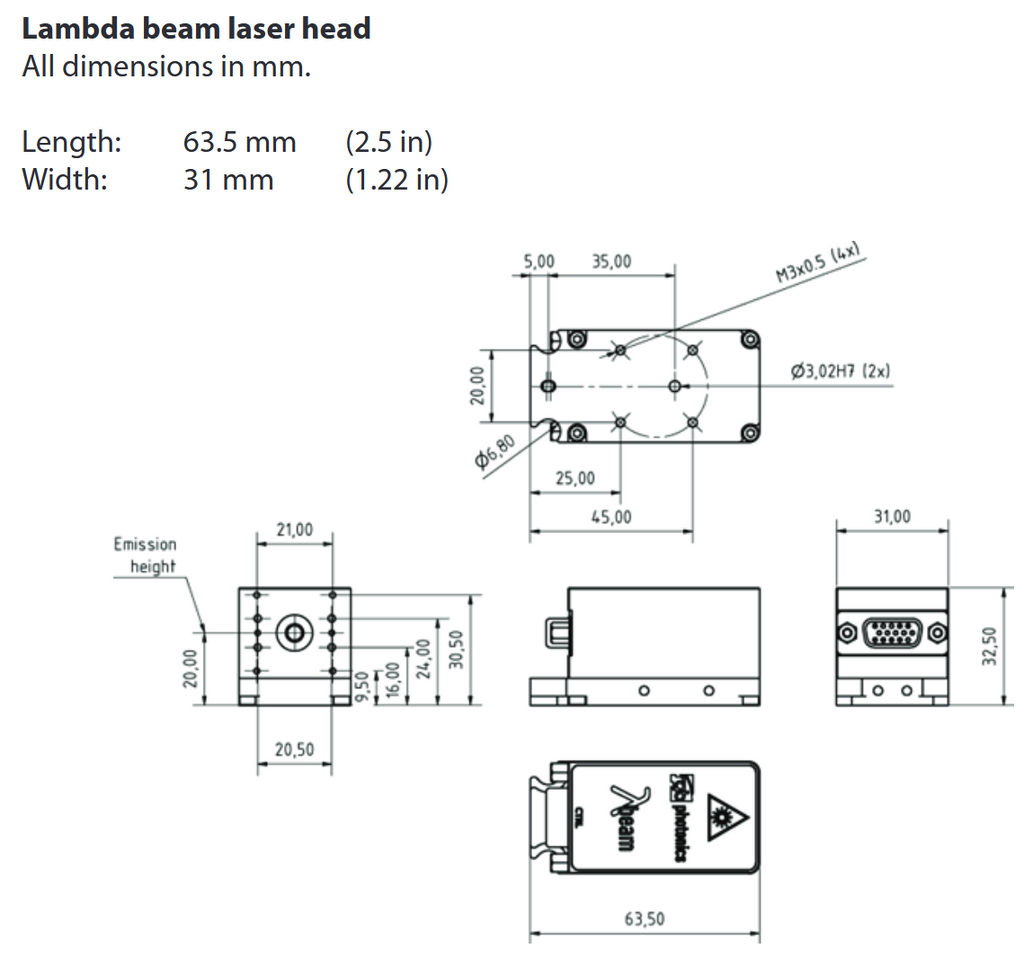

- Beam diameter: 1.1 x 2.2 mm
- Divergence: < 1.2 mrad
- Beam mode: TEM00
- Polarization: Linear, >100:1
- Power stability: <1% (10h)

Ships from Cambridge, MA.
