Prism Attenuator - 200W

USD $1,520.00
Description

OVERVIEW

  • Spectral range: 190nm - 2.000nm
  • Wedge material: Uncoated fused silica
  • Free aperture: Ø=15mm
  • Power (Pmax): <200W
  • Intensity (Imax) cw: <20kW/cm²
  • Intensity (Imax) pulsed: 2GW/cm² / 30J/cm² @ 15ns, 1Hz
  • Dimensions: 40mmx40mmx80mm

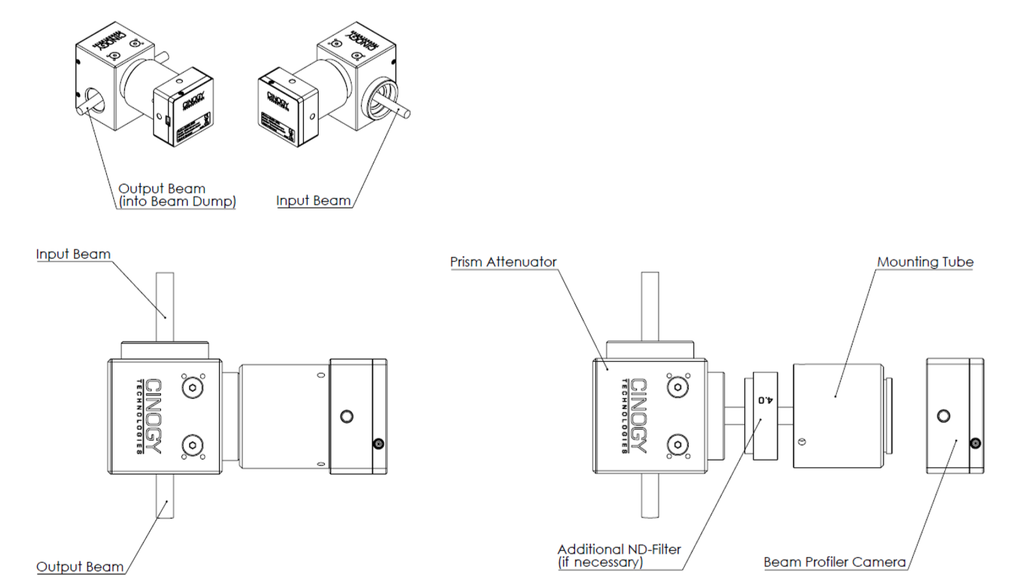

The Prism Attenuator 200W can be mounted on any CinCam CMOS or CinCam InGaAs.
