IndiGo Visible Handheld Spectrometer
Description
IndiGo: The Power of Spectroscopy at Your Fingertips
IndiGo is a compact modular spectrometer that fits in the palm of your hand. This handheld spectrometer can be used for many different applications: it allows measurement of absorption, emission, or transmission spectra from 380 nm to 780 nm with a standard resolution of 1.5 nm (FWHM). Other resolutions are available, contact us for more information.
It is also available as a High Spectral Sensitivity instrument with the IndiGo HSS model.
IndiGo comes with a PC desktop application and is also compatible with Android tablets and smartphones equipped with a Bluetooth 5.0 connection for increased mobility.

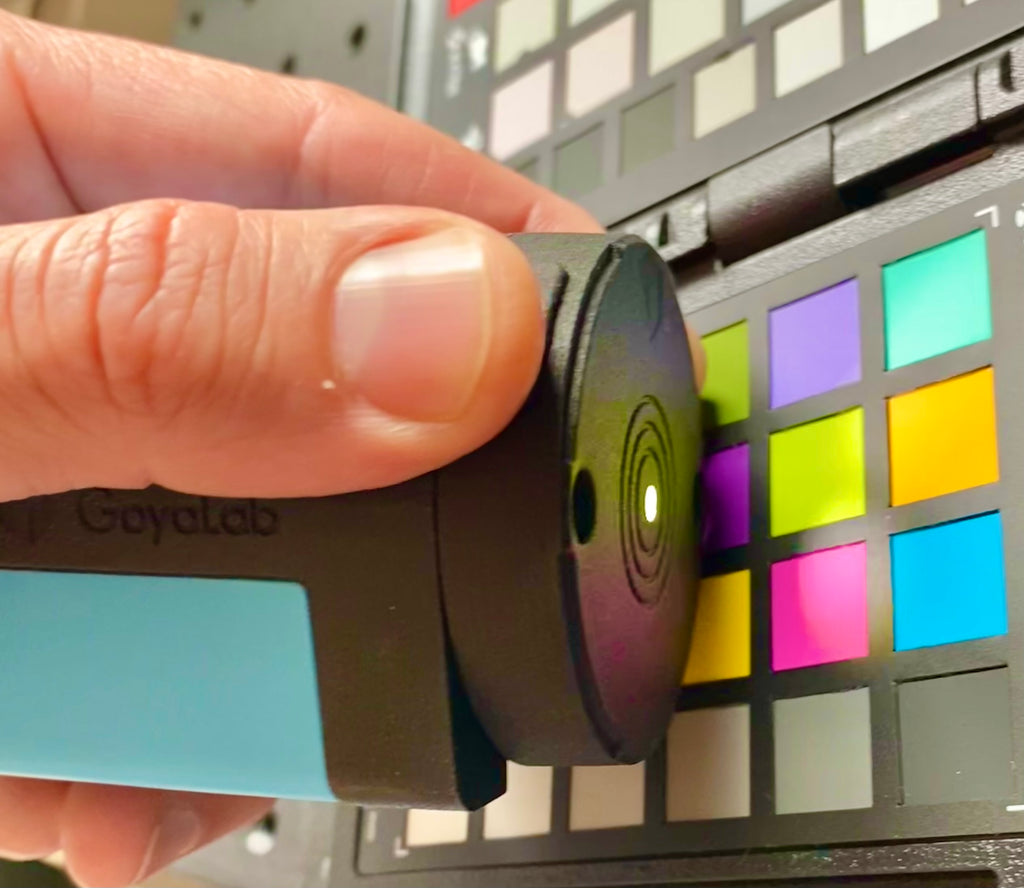

With its optional modules, IndiGo can become a fluorescence spectrometer, a reflection spectrometer or a chemical analyzer that fits in your pocket.
Specifications:
- Wavelength Range: 380nm - 780nm
- Grating: 600 Lines/mm, 500nm blaze
- Sensor: CMOS OnSemi MT9M001, pixel size 5.4µm, 1024 lines
- S/N Ratio: 400:1
- Dynamic Range: 1000:1
- Resolution: 1.5nm
- Integration time: 1ms - 24s (averaging option in-software)
- Connectivity: USB-C and Bluetooth
- Dimensions: 76x45x53mm, 107g
The IndiGo is supplied with:

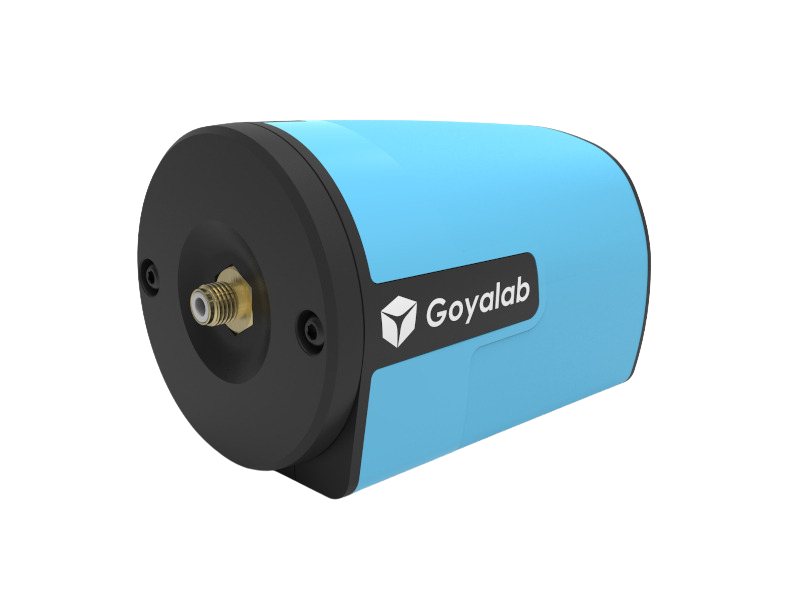

- An adapter for optical fiber light input
- USB cable

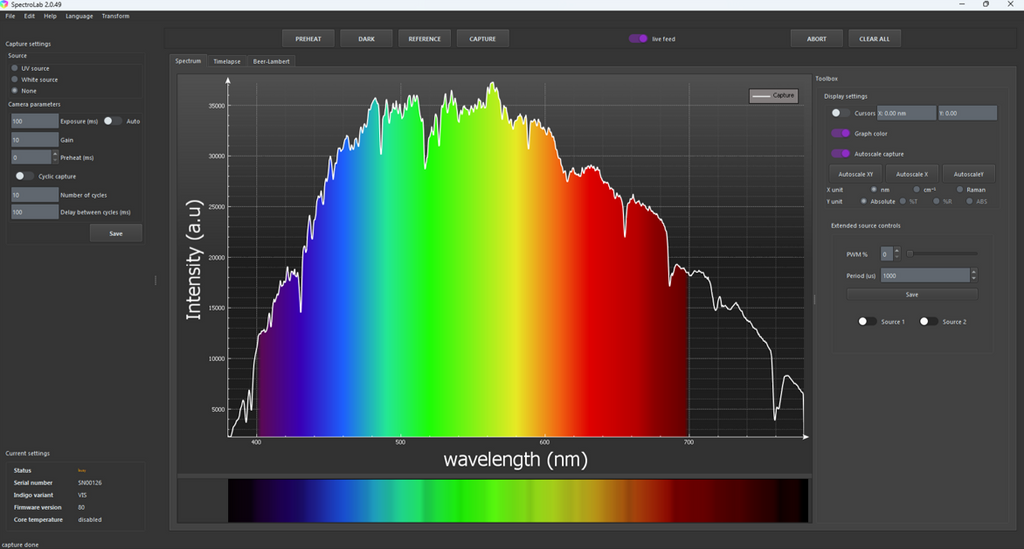

- A powerful PC application and a mobile Android application
For more information on the IndiGo, visit our main site here: https://www.axiomoptics.com/products/indigo/
For examples of applications, visit our application page: https://www.axiomoptics.com/indigo-spectrometer-applications/
Key Features
Extended Wavelength Range: 1300-2200 nm for advanced imaging applications.
High Quantum Efficiency: Over 60% QE at -20ºC between 1340-2100 nm.
Fast Frame Rates: Up to 303 Hz in 8-bit mode; 180 Hz at full resolution in 14-bit.
Thermo-Electric Cooling (TEC2): 2-stage cooling to reduce noise and dark current.
Factory Calibrated NUC: Non-uniformity correction for optimal performance at -30ºC, -20ºC, and -10ºC.
Multi-Line & Multi-AOI Readout: Focus on relevant wavebands to increase speed and processing efficiency.
Ideal for
- Spectrometry
- Hyperspectral Imaging
- Semiconductor, Recycling, and Metal & Glass Industries
- Medical Imaging, Agriculture, and Surveillance
- Applications needing enhanced vision, such as fog penetration
Software Compatibility
Vimba Software Suite (Platform Independent)
Easy Setup: Quick image acquisition and feature exploration
Comprehensive APIs: Supports Python, C, C++, and .NET for flexible development
Third-Party Support: Compatible with LabVIEW, MATLAB, OpenCV, and more
Supported Platforms
Windows 10/11 (32-bit and 64-bit)
Linux (Ubuntu 20.04 LTS, Debian 11.2)
ARM64 (NVIDIA Xavier NX)
Specifications
Resolution: 636 x 508 pixels
Cooling: TEC2 (60K delta)
Frame Rates: Up to 303 Hz (8-bit), 238 Hz (12-bit packed), 180 Hz (14-bit)
Temperature Set Points: -30ºC, 20ºC, -10ºC
