CinCam CMOS - Technical data
CinCam CMOS
CinCam CMOS Spectral Range
CinCam CMOS 1201 - Operational Range
CinCam CMOS 1201 - Sensor Response
CINOGY Technologies GmbH

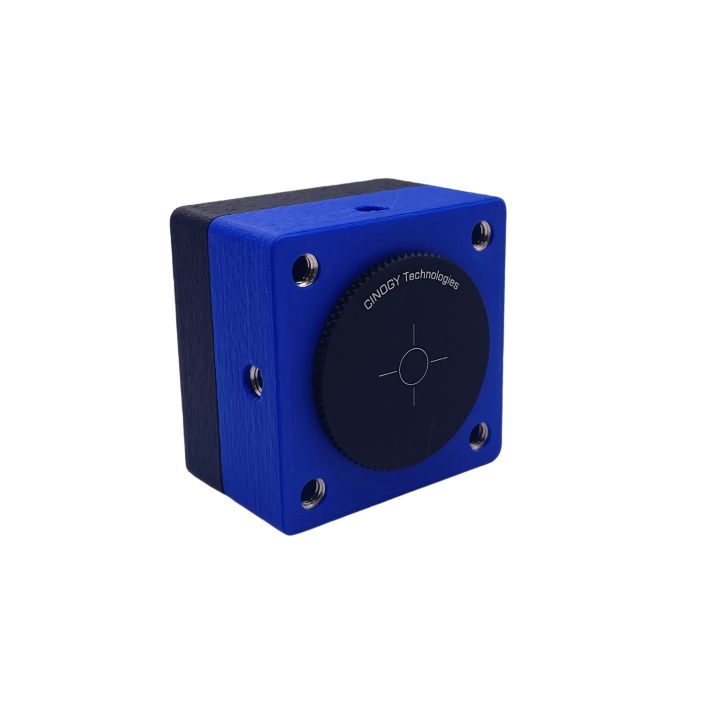

Laser Beam Profiler - CinCam CMOS 1201 + RayCi Lite

USD $1,465.00

OVERVIEW

  • Sensor Active area (mm²): 6.7 x 5.3
  • Physical Dimension (mm3): 40x40x20
  • Number of pixel: 1280 x 1024 (1.3MPixel)
  • Pixel size: 5.2×5.2µm
  • Shutter: Rolling
  • Mode: CW
  • Bit depth: 8-Bit
  • Dynamic: 68dB (1:2500)
  • Interface: USB2.0
  • Spectral range: 400nm – 1150nm (absorptive built-in ND filter)
  • RayCi Lite Software included in package: specification

SCOPE OF DELIVERY

1 beam profiler, 1 USB cable, RayCi Lite license

Contact us to get the RayCi upgraded version

FOR MORE INFORMATION ABOUT LASER BEAM PROFILERS AND THIS PRODUCT:



Shipping Information

Ships from Cambridge, MA

Return Policy

We offer a full return on all unopened products within 30 days from the date of delivery. To be eligible for a full return, your Product must be unused, in the same condition that you received it, and in its original packaging. Any opened products will be subject to a 25% restocking fee.

All returned products are subject to inspection. Returns will not be accepted for products showing signs of laser damage, improper handling, or environmental contamination.

Refunds will be processed within 7-10 business days of receiving the returned Product and will be credited to the original method of payment. Shipping costs are non-refundable.

For our full terms of sale, click here: https://shop.axiomoptics.com/policies/terms-of-service

More details
×
