Leukos

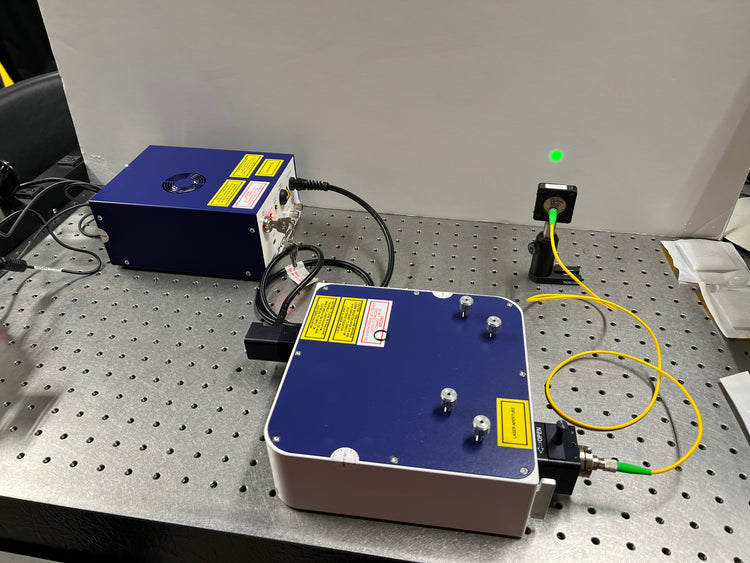

SPECIAL DEAL - SAMBA 450 Supercontinuum Laser + Fiber Coupling Module (DEMO UNIT)

USD $10,425.00

SAMBA is a low-cost supercontinuum laser that offers multiple wavelengths from UV to IR with a flat, stable, broadband spectrum and a fibered output. Turn-key, benchtop, maintenance-free, robust and user-friendly, supercontinuum sources are several orders of magnitude brighter than incandescent lamps and offer greater spectral bandwidth than sLEDs. They are convenient for general purpose laboratory applications such as spectroscopy, optical component characterization, interferometry, optical metrology, fluorescence microscopy and more.

This SAMBA laser comes with your choice of either a fiber coupling module for the visible range (400nm-850nm), or the NIR (800nm-1500nm) range. Additional bandpass filter mount built in the fiber coupling module for additional wavelength selection.

Specs

  • Type: Compact Supercontinuum Laser
  • Spectral bandwidth: 450 - 2400 nm
  • Total average power*: > 150 mW
  • Total visible power*: > 30 mW
  • Seed nominal repetition rate: ~ 30 kHz
  • Triggerable range: 10 Hz up to > 15 kHz (typ. ~ 20 kHz)
  • Timing jitter: < 2 µs
  • Power stability: +/- 1 %
  • Seed pulse width: > 1 ns
  • Spatial mode: Singlemode
  • Polarization state: Unpolarized
  • Laser output: FC/APC
  • Fiber cable output length: ~ 1 meter (armored cable)
  • Synchronization output: External Trigger Output (analog signal)
  • Mechanical format: Compact benchtop
  • Control interface: Front panel and USB, GUI with API incuded

Download the full data sheet HERE.

Ideal for

~Imaging:
Supercontinuum-based imaging empowers your applications in biology, medicine, materials science and many other areas. The following techniques are commonly used:
-Optical coherence tomography
-Transmission imaging
-Confocal microscopy
-Multiphoton microscopy
-Coherent Raman microscopy

~Spectroscopy
Our supercontinuum sources are intrinsically suitable for a great variety of spectroscopy experiments, where broadband laser operation is required in the ultraviolet, visible or infrared.
-Ellipsometry
-Spectral imaging
-Spectral reflectivity imaging
-Cavity ring down spectroscopy
-Infrared spectroscopy
-Time-resolved spectroscopy
-Vibrational spectroscopy

~Remote Sensing
Are you looking for new solutions for pollution analysis, gaz detection, wind sensing, or vegetation monitoring? Think supercontinuum. The supercontinuum approach will revolutionize your system of terrestrial, oceanic or atmospheric sensing.
-Light detection and ranging (LIDAR)
-Hyperspectral imaging

~Metrology
Leukos supercontinuum sources are excellent for the broadband characterization of optical components. They are the perfect tool for accurate measurement in the ultraviolet, visible or infrared.
-Transmittance
-Reflectance
-Dispersion
-Birefringence
-Cut-off wavelength
-Detector responsivity

~Particle Analysis
Multiple wavelength operation is a powerful technique for analyzing cells or particles, by means of fluorescence and/or scattering measurement. For example, this multiparametric approach can be used to differentiate blood cell subpopulations. In this context, supercontinuum sources provide you with an incredible choice of excitation wavelengths. Need to analyze cells in flow or detecting nanoparticles in food? Try the supercontinuum solution.
-Flow cytometry
-Nanoparticle detection
-Particle size analysis
-Particle shape analysis
-Microfluidics particle sorting
